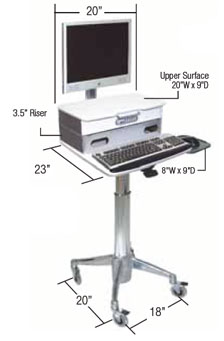

Medical Drawer Flat Panel Cart MED-70

Model No.	Base Dim.	Work. Dim.	Weight
	W x D	D x W	Lb.
MED70P-XX-YYYY (w/ lock)	18” x 20”	23” x 20”	52
MED71P-XX-YYYY (no lock)	18” x 20”	23” x 20”	51
MED72P-XX-YYYY (w/chart pocket)	18” x 20”	23” x 20”	49

(XX = counterbalance system, YYYY = worksurface color)

Base:

• Reference: A18P - Polished
• 18” Height Adjustment (28.5” - 46.5”)
• 100mm Highly Mobile Rollerblade Casters (2 Locking/2 Non-Locking)
• 18” W x 20” D Footprint
• Height adjustment hand lever

Worksurface:

• Reference: TF2320
• 1" dual surface - 20” W x 23” D
• 3 cable management grommet holes
• Integrated Black Vinyl Palm Support

Accessory:

• Reference: SAM-3 (Swing-A-Mouse) 8” W x 9” D
• Reference: FSA-2 (Flat Screen Monitor Arm)

Medical drawer laptop cart references:

• MED70P - Includes Medical Drawer (Ref. MD-40), Keyless Lock, Removable Insert, Integrated Handle
• MED71P - Includes Medical Drawer (Ref. MD-41), No Keyless Lock, Removable Insert, Integrated Handle
• MED72P - Includes Chart Pocket (Ref. MD-42), (18.5”W x 2”H x 9”D)

Key Features:
Flat Screen Monitor Arm (FSA-2), 16” Height Adj., +100°/-40° Tilt,+/- 90° Swivel, +/- 180° Rotation, VESA Std., 75mm or 100mm	Back Detail of Flat Screen Arm Placement	Keyless Security System (KLS) for Front Storage Compartment (MED-70P Only)	Pull-Out Drawer with Removable Insert (Incl.) Drw. & Ins. Dimensions: 18.44”W x 2.2”H x 8.75”D Six Compartments 4 - 2.625”W x 2.125”H x 8.5”D 2 - 2.625”W x 2.125”H x 7”D (MED-70P & MED-71P Only)	Back Compartment with Locking Panel Secures Technology Components and provides Cable Management	Chart Pocket Inside Dimensions: 18.5”W x 2”H x 9”D	Drawer front available in matching 3D Laminate
