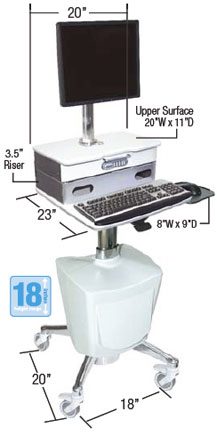

Medical Drawer Flat Panel Cart - W5

Our Carts are the industry leader in ease of adjustment, superior mobility, rugged performance, and hi-tech styling. Please take a moment to find the cart that provides the solution for your exact requirements.

Life Model No.	Base Dim.	Work. Dim.	Weight
	W x D	D x W	Lb.
W50L-XX-YYYY-Z (w/ lock)	18” x 20”	23” x 20”	101
W51L-XX-YYYY-Z (no lock)	18” x 20”	23” x 20”	100
W52L-XX-YYYY-Z (w/cht. pocket)	18” x 20”	23” x 20”	98
SLA Model No.	Base Dim.	Work. Dim.	Weight
	W x D	D x W	Lb.
W50S-XX-YYYY-Z (w/ lock)	18” x 20”	23” x 20”	129
W51S-XX-YYYY-Z (no lock)	18” x 20”	23” x 20”	128
W52S-XX-YYYY-Z (w/cht. pocket)	18” x 20”	23” x 20”	126

(L= LiFe Battery, S= SLA Battery, XX = counterbalance system, YYYY = worksurface color,
Z = Accent Color)

Base:

• Reference: A19P
• 100mm heavy duty casters
• WLT-40 (Life Battery System)
  OR
• WST-55 (SLA Battery System)

Worksurface:

• Reference: TLB2020
• Flat Panel Surface
• 1” 3D Laminate
  Upper Surface: slope edge
  Lower surface: reversed tear drop edge

Accessory:

• Reference: SAM-3 (Swing A Mouse)
• Reference: HW (Handle)
• Reference: CT (Cord tray)
• Reference: FSA-2 (Flat panel monitor arm)
• Reference: MD-40 (Medical Flat Panel Drawer)
  Drawer Front available in Matching 3D Laminate
  Drawer Housing - Platinum Finish
• Chart Pocket Inside Dimensions: 18.5”W x 2”H x 9”D (W52 Only)

Medical drawer laptop cart references:

• W50 - Includes Medical Drawer (Ref. MD-40), Keyless Lock, Removable Insert, Integrated Handle
• W51 - Includes Medical Drawer (Ref. MD-41), No Keyless Lock, Removable Insert, Integrated Handle
• W52 - Includes Chart Pocket (Ref. MD-42), (18.5”W x 2”H x 9”D)

Key Features:
Power System Enclosure	Handle with External User Interface	Rear Access to Cord Tray		Coiled Power Cord (Left and Right Rear Worksurface Mounting)	Flat Screen Monitor Arm (FSA-2),16” Height Adj., +100°/-40° Tilt, +/- 90° Swivel, +/- 180° Rotation,VESA Std., 75mm or 100mm20 lb. Maximum Weight Limit
Keyless Security Systemfor Front Storage Compartment (W40 Only)	Pull-Out Drawer w/ Removable Insert (Incl.) Drw. &Ins. Dimensions:18.44”W x2.2”H x 8.75”D Six Compartments 4 -2.625”W x 2.125”H x 8.5”D 2 -2.625”W x 2.125”H x 7”D (MED-80P & MED-81P Only)	Back Compartment with Locking Panel Secures Technology Components and provides Cable Management	Swing A Mouse (SAM3) 8”W x 9”D	Height Adjustment Hand Leverand Black Vinyl Palm Support	100mm Highly Mobile Heavy Duty Tente Casters 2 Locking/ 2 Non-Locking
